MDF Incineration and Woodwaste Heating Plant; Warehouse and Marine Air Conditioning; Soft Drinks Plant BoP Module
Therminol, Dowtherm and Thermia B Heat Transfer Fluid Installations, with Piping Stress Isometrics
Factory Services Building


Covenry TN Teeside Skem TN Haywood TN



MDF Incineration and
Wood Waste Heating Plant

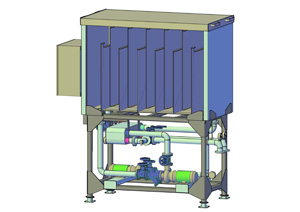

85kW base load chiller plant with

BoP Control Module

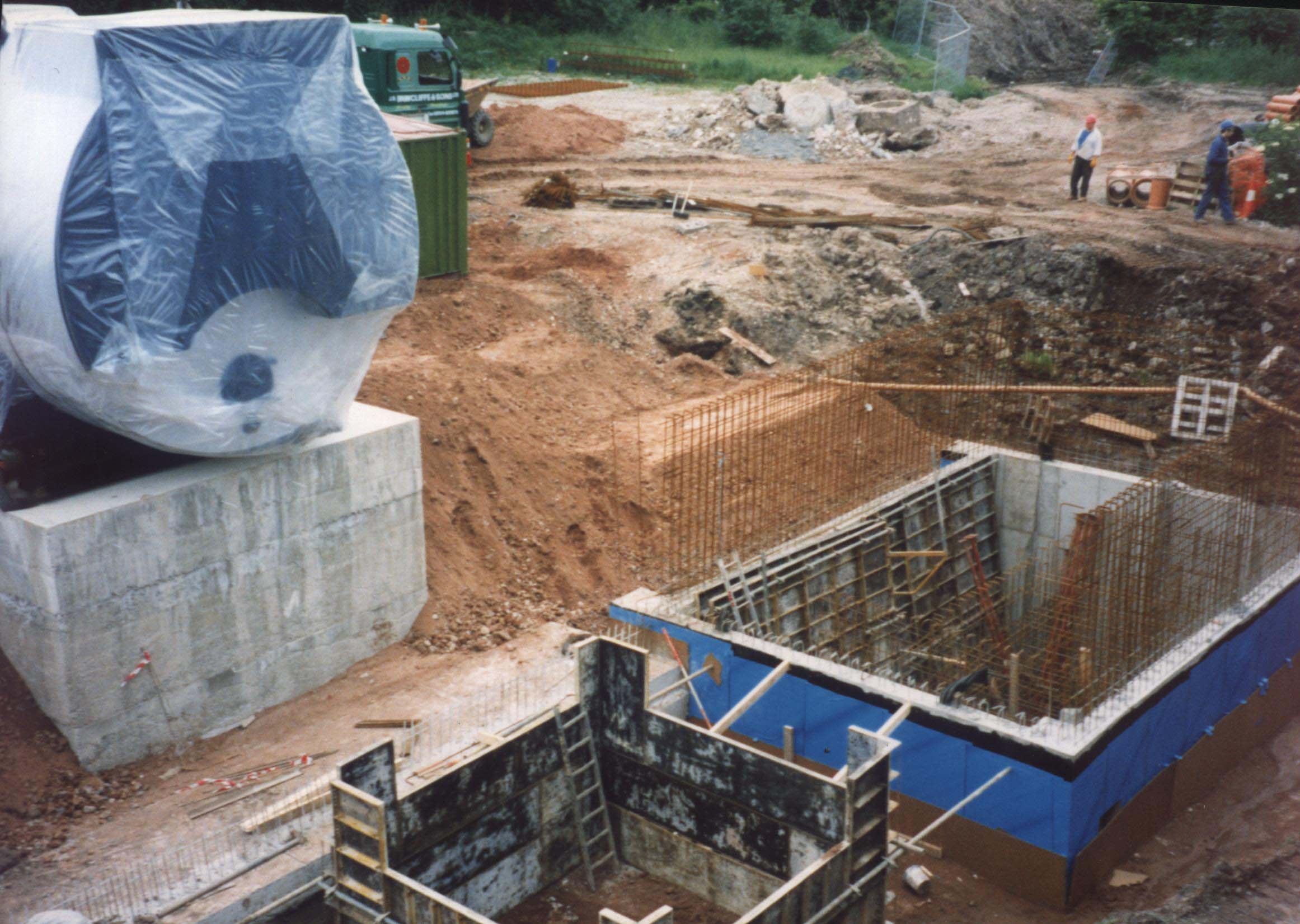

10MW boilerhouse & services block

with cooling towers & radiators





Polymer conversion plant, vessels,

piped systems & stresswork



IACTN HWTN FDTN Skid1TN



Pipe layout and basis of stress model
for liquid phase heating plant below

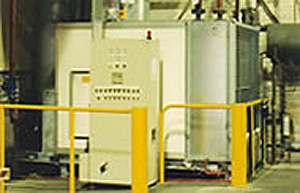

575 kW warehouse climate control plant
70% relative humidity at 7 deg.C

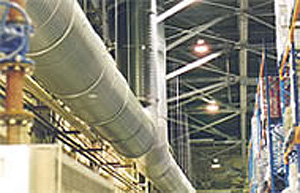

1440 mm ductwork serving
one of two 240 kW air chilling plants

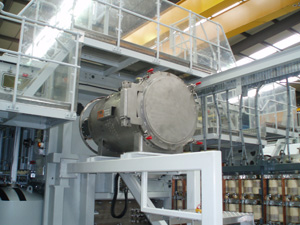

One of two polymer conversion modules
pipe layout and basis for stress model



Therminol AHUTN IcePlant ValentiaTN



200 kW liquid phase heating plant

running Therminol 66 at 340 deg.C

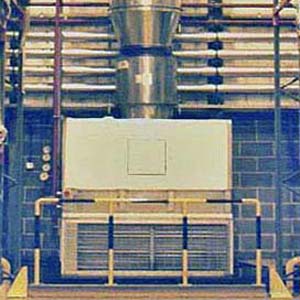

One of four 120 kW air chillers
with pumped systems

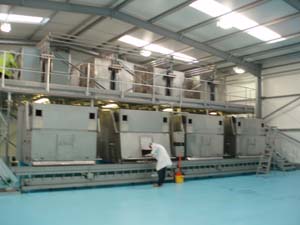

14.4 tonne/day ice-making

plant and factory fit-out



Dove Thermal Small Craft Aircon System

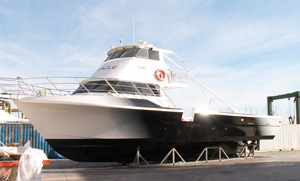

BMW Admiral's Cup Fleet Chase Boat
